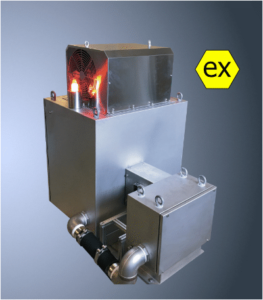

ATEX certified system for uses in explosive atmosphere


  • Industry production sectors

  • Industry R&D sectors

Key features

  • Options

    Number of Detectors : 1

    Size of Cabinet : Compact

    Operation Mode : Local or Remote

  • Assembly configuration

    1 source and 1 detector in horizontal setup (1XH)

    1 source and 1 detector in vertical setup (1XV)


Dimension1.0 m Width × 1.3 m Height × 1.2 m Depth
Weight200 – 300 kg (excluding high pressure carbon fiber pipe)
Power input 220-230 VAC, 10 A, 50/60 Hz (1500 W max power consumption)
Detector* recording speed
*Other types of detectors available on request
191 fps at 4×4 binning mode (300 um/pixel)
155 fps at 2×2 binning mode (150 um/pixel)
59 fps without binning (75 um/pixel)
Detector size229.8 mm × 64.6 mm (line detectors are also available)
Other sizes available on request
Detector sensorHigh efficiency, GADOX, NDT
Spatial resolution Maximum 75 um without binning
Minimum 300 um at 4×4 binning
Work temperatureOutdoor -10 – +35 C
Max humidity80% (no condensation)
Control systemSecurity key switch, push button and software activation
Heating and cooling Heating: Heating: Anti-freezing and anti-condensate heaters
Cooling: Air or water cooled
SoftwareFlowDIARY™ 3.0
Accuracy on holdup measurementTwo-phase gas-liquid or liquid-liquid: ±3 % (absolute holdup)*
Three-phase gas-oil-water: ±5 % (absolute holdup)*
PC specs Dell workstation T5810: Intel i7, 32 GB RAM, 500G SSD, 4TB HDD, WIN 7/10 64bits
Storage Temperature-10 – +50 C
Storage humidity10 – 90% (no condensation)
Health, safety and environmentConform with all the regulations for the use of industrial X-ray systems and is approved by European and local authorities
Training and supportAll training on calibration, operation and data analysis is included
12-month technical support after delivery are included (unlimited hours)
MaintenanceOne major maintenance within the first 12 months is included
Warranty1 year after delivery
