Powerful and compact system for versatile installations


  • Universities

  • Research institutes

  • Industry R&D sectors

Key features

  • Options

    Number of Detectors : 1 or 2

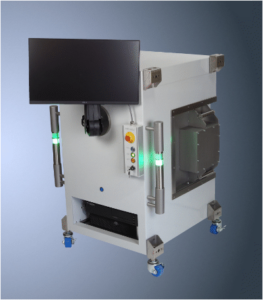

    Size of Cabinet : Compact

    Operation Mode : Local or Remote

  • Assembly configuration

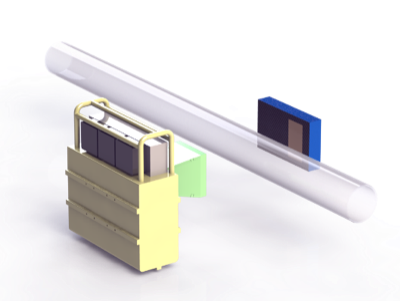

    1 source and 1 detector in horizontal setup (1XH)

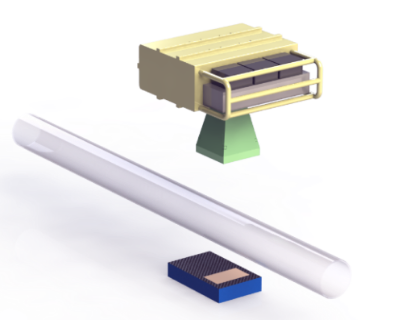

    1 source and 1 detector in vertical setup (1XV)

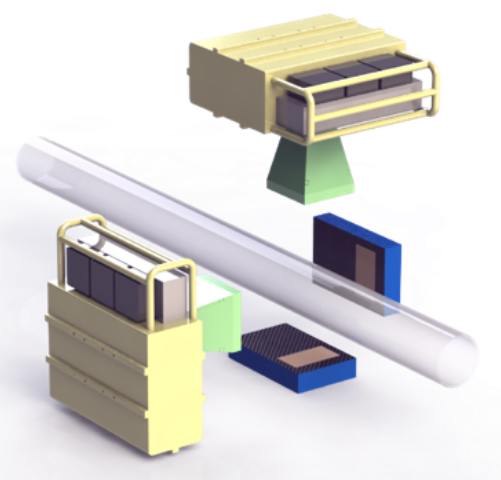

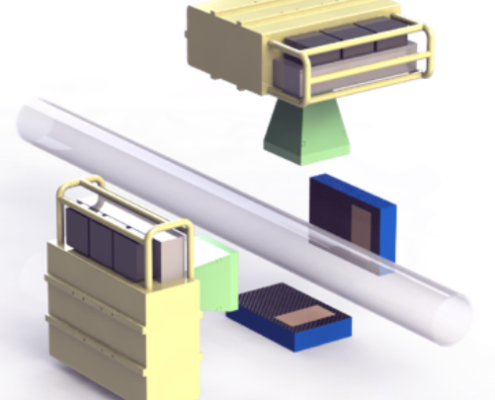

    2 sources and 2 detectors (2X)


Dimension0.8 m Width × 1.2 m Height × 0.8 m Depth
Weight200 – 400 kg
Power input 220-230 VAC, 10 A, 50/60 Hz (1500 W max power consumption)
Detector* recording speed
*Other types of detectors available on request
191 fps at 4×4 binning mode (300 um/pixel)
155 fps at 2×2 binning mode (150 um/pixel)
59 fps without binning (75 um/pixel)
Detector size229.8 mm × 64.6 mm (line detectors are also available)
Other sizes available on request
Detector sensorHigh efficiency, GADOX, NDT
Spatial resolution Maximum 75 um without binning
Minimum 300 um at 4×4 binning
Work temperatureIndoor room temperature
Max humidity80% (no condensation)
Control systemSecurity key switch, push button and software activation
Heating and cooling Heating: N/A
Cooling: Air or water cooled
SoftwareFlowDIARY™ 3.0
Accuracy on holdup measurementTwo-phase gas-liquid or liquid-liquid: ±3 % (absolute holdup)*
Three-phase gas-oil-water: ±5 % (absolute holdup)*
PC specs Dell workstation T5810: Intel i7, 32 GB RAM, 500G SSD, 4TB HDD, WIN 7/10 64bits
Storage Temperature-10 – +50 C
Storage humidity10 – 90% (no condensation)
Health, safety and environmentConform with all the regulations for the use of industrial X-ray systems and is approved by European and local authorities
Training and supportAll training on calibration, operation and data analysis is included
12-month technical support after delivery are included (unlimited hours)
MaintenanceOne major maintenance within the first 12 months is included
Warranty1 year after delivery
